•MODEL:DBSS-10EX-K •TYPE :BUTTORN RESET •CONTACT:(WATER PROOF CONTACT) SPDTx2EA •PROTECTION: EXPLOSION PROOF(EX tD A21 IP67 T85) •WATER PROOF: IP 67 •CABLE ENTRY : PF 3/4" x 2EA

•MODEL : DBSS-10EX-L •TYPE:FLICKERING LAMP WITH RED PLATE •CONTACT CAPACITY:AC 15A/250V/125V. DC 15A/24V.48VVDC •PROTECTION :EXPLOSION-PROOF(EX tD A 21 T85 IP 67) •CONTACTS : SPDT X2EA •REQUIRED FORCE OF PULL CORD:8 ±1Kg •CABLE ENTRY : PF 3/4 X 2

•MODEL : DBSS-10EX-KL •TYPE:KPDR •CONTACT CAPACITY:AC 15A 125/250V. DC 15A 24V/48VDC •PROTECTION :EXPLOSION-PROOF(EX tD A 21 T85 IP 67) •CONTACTS : SPDT X2EA •REQUIRED FORCE OF PULL CORD:8 ±1Kg •CABLE ENTRY: PF 3/4"x2

•TYPE : MANUAL RETURN •CONTACT CAPACITY : 15A 125VAC/250VAC. 15A 24/48VDC •PROTECTION : EXPLOSION PROOF.(EX tD A21 T85 IP67) •CONTACTS : SPDT X2EA •REQUIRED FORCE OF PULL CORD : 8 ±1Kg •WEIGHT:3.62KG •CABLE ENTRY: PF 3/4" x 2EA

•MODEL : DBSS-10EX-UL •TYPE:BUTTON RESET &TOP COVER •CONTACT CAPACITY:15A/250VAC.5A 24V.3A VDC •LAMP:FLICKERING LED LAMP . LAMP COVER: PC •REQUIRED FORCE OF PULL CORD:8±1Kg •PROTECTION:EXPLOSION PRIOOF(EX tD A21 T85 IP67)

DBSS-10EX-UH •TYPE : UPPER COVER •NUMBER OF CONTACTS :SPDTx2EA •REQUIRED FORCE OF PULL CORD : 8±1Kg •WEIGHT: 3KG •CABLE ENTRY : PF 3/4" x 2EA WITH PLUG •EXPLOSION PROOF(EX tD A21 IP67 T85) •KOSHA CERT

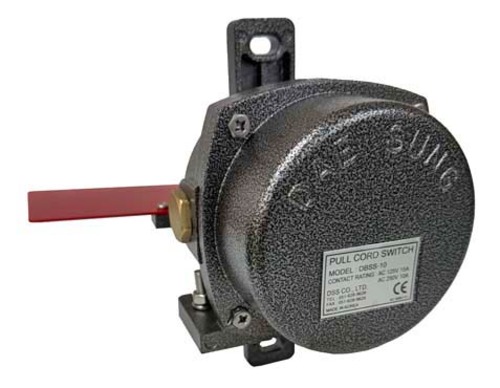

•MODEL : DBSS-10 •TYPE : MANUAL RETURN •CONTACT CAPACITY : 15A 125VAC.10A 250VAC. 10A 24V/48VDC. •NUMBER OF CONTACTS :SPDTx2EA •REQUIRED FORCE OF PULL CORD:7±1Kg •WEIGHT: 2.7KG •CABLE ENTRY: PF 1/2"OR PF 3/4" x 2EA •WATER PROOF: IP65 CE(tuv) • CE

DBSS-10K CE 인증 (IEC 60947-5-1) IP67 •CONTACT CAPACITY : 15A 125VAC.10A 250VAC. 5A 48VDC. •NUMBER OF CONTACTS :SPDTx2EA •REQUIRED FORCE OF PULL CORD : 7±1Kg •TYPE : MANUAL RETURN •WEIGHT: 2.7KG •CABLE ENTRY :PF 1/2" x 2EA WITH PLUG

TYPE:FLICKERING LAMP & MANUAL RETURN CONTACT CAPACITY:15A/250V AC.5A 48V DC. CONTACTS :(WATER PROOF CONTACT) SPDT X2EA REQUIRED FORCE OF PULL CORD:7±1Kg WEIGHT:2.7KG CABLE ENTRY : PF 3/4" x 2EA PROTECTION:IP65 COLOR : HAMMERTION FE411 CE

•MODEL : DBSS-10 •TYPE : MANUAL RETURN •CONTACT CAPACITY : 15A 125VAC.10A 250VAC. 10A 24V/48VDC. •NUMBER OF CONTACTS :SPDTx2EA •REQUIRED FORCE OF PULL CORD:7±1Kg •WEIGHT: 2.7KG •CABLE ENTRY: PF 1/2"OR PF 3/4" x 2EA •WATER PROOF: IP65 CE(tuv) • CE
