CONTACT CAPACITY : 10A 120VAC. 10A 30VDC. INPUT POWER: 85-250VAC FREE VOLTAGE(OPTION: DC 24V) NUMBER OF CONTACTS : SPDT CABLE ENTRY : PF 1/2" x 2EA 검출 범위: WITHIN 7.5M PROTECTION : IP 65 SENSOR & WIRE: SUS 304

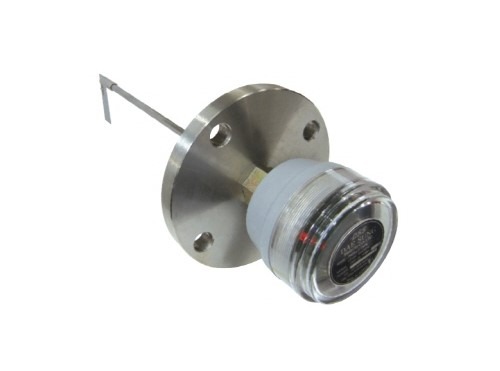

TYPE : PADDLE POWER:AC 110/220V .4.0W RATING: 5A 250V AC. PROTECTION : IP65 OUTPUT CONTACTS : SPDT 4 RPM FLANGE SIZE : JIS 5K 50A. 10K 50A. CABLE ENTRY : PF 1/2" WEIGHT : 2KG PADDLE LENGTH 75mm - 1800mm

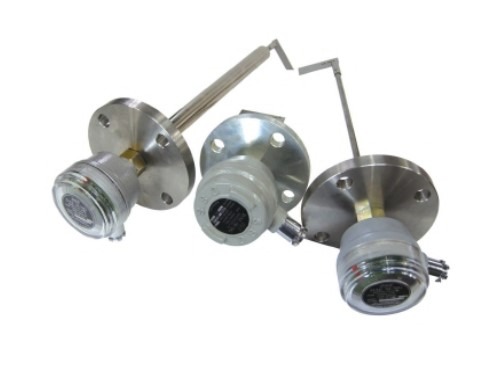

TYPE : PADDLE PROTECTION POWER:AC 110V OR 220V .4.0W RATING: 5A 250V AC. PROTECTION : IP65 OUTPUT CONTACTS : SPDT 4 RPM PADDLE LENGTH : 150MM-2000MM FLANGE SIZE : JIS 5K 50A. 10K 50A.

CONTACT CAPACITY : 15A 125VAC.10A 250VAC. 5A 48VDC. NUMBER OF CONTACTS : SPDT x 2EA OPERATING ANGLE :35 DEGREE CABLE ENTRY :PF 3/4" x 2EA WEIGHT:3.4KG

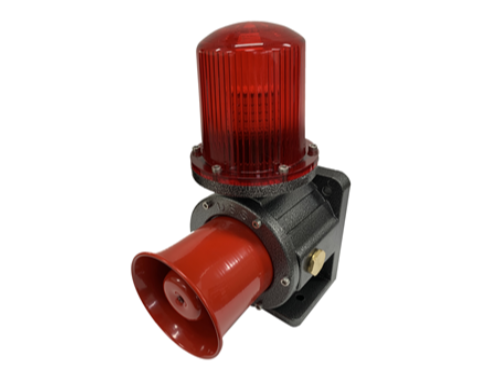

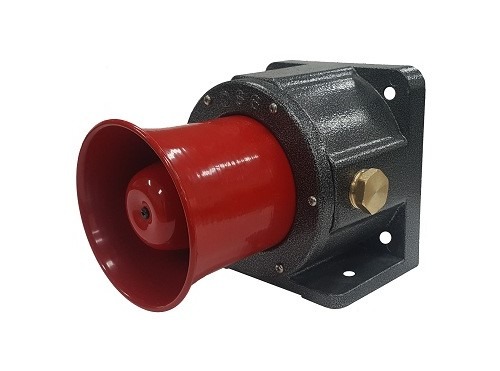

-POWER: 85-250VAC FREE VOLTAGE(OPTION: DC 24V) -KIND OF SOUND:5 KIND -LAMP:FLECKERING LIGHT (49 LED) -LAMP COVER : POLYCARBONATE -CABLE ENTRY: PF 3/4 x3EA -SOUND:MAX 125DB (ADJUSTABLE) -PROTECTION:EXPLOSION PROOF(EX tD A21/22 T85 IP 66)KCs 인증 -SUS

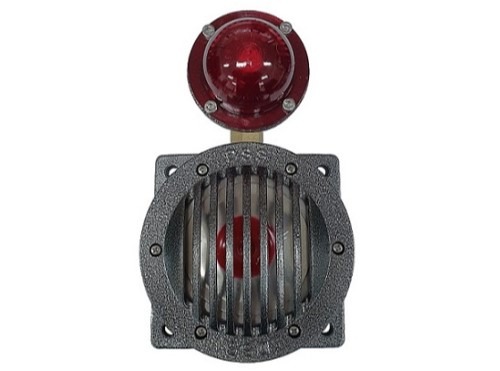

-MODEL : SA-10EX-L -TYPE : VIBRATING RESONATE &FLICKERING LAMP -POWER : AC 110-125VAC OR 220V-250VAC 50HZ-60Hz -CON N ENTRY:PF3/4 -DECIBLE: 120-125DB(ADAUSTABLE) -ASSY: FLICKERING LAMP

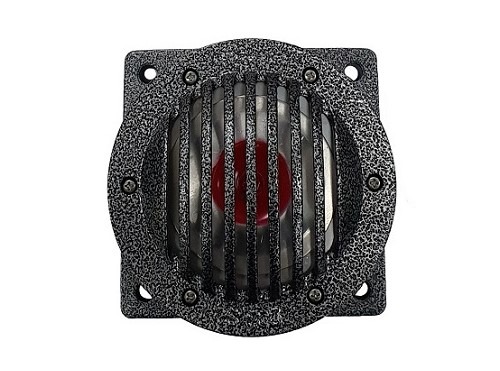

-TYPE : VIBRATING RESONATE -POWER : AC 110-125VAC OR 220-250VAC 50HZ-60Hz -CON N ENTRY:PF3/4 -DECIBLE:MAX 125 DB (ADJUSTABLE)

TYPE :UP COVER CONTACT : SPDTx2EA CONTACT ENTRY:NPT 3/4 x2EA MAT: AL PROTECTION: EXPLOSION PROOF:EX tD A22 T 85 IP66

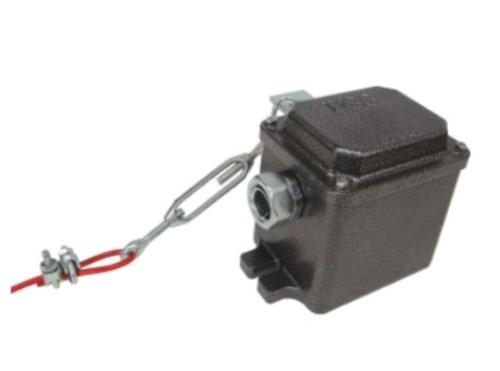

•MODEL : DBSS-10 •TYPE : MANUAL RETURN •CONTACT CAPACITY : 15A 125VAC.10A 250VAC. 10A 24V/48VDC. •NUMBER OF CONTACTS :SPDTx2EA •REQUIRED FORCE OF PULL CORD:7±1Kg •WEIGHT: 2.7KG •CABLE ENTRY: PF 1/2"OR PF 3/4" x 2EA •WATER PROOF: IP65 CE(tuv) • CE

PULL CORD SWITCH ACC PULL CORD WIRE : 4.7 RED COATED EYE BOLT : 8MM WIRE CLIP : 3/16 INCH
